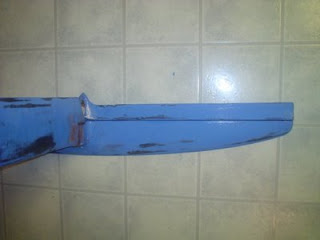

Pics are below. The numbers are again:
(1) cable travel from wand aft to wand forward
(2) rod travel that corresponds to above

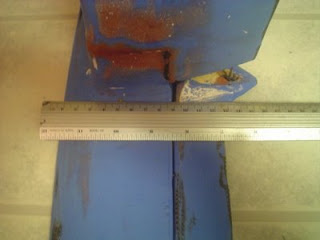

(3) total flap angluar travel that corresponds to above.
I measured my boat this afternoon (hull on its side supported with a sawhorse, could also be achieved with the rig on) and these are my numbers:
(1) 32 mm
(2) 31 mm
(3) ~36.5 degrees.
Thanks for any input.....
